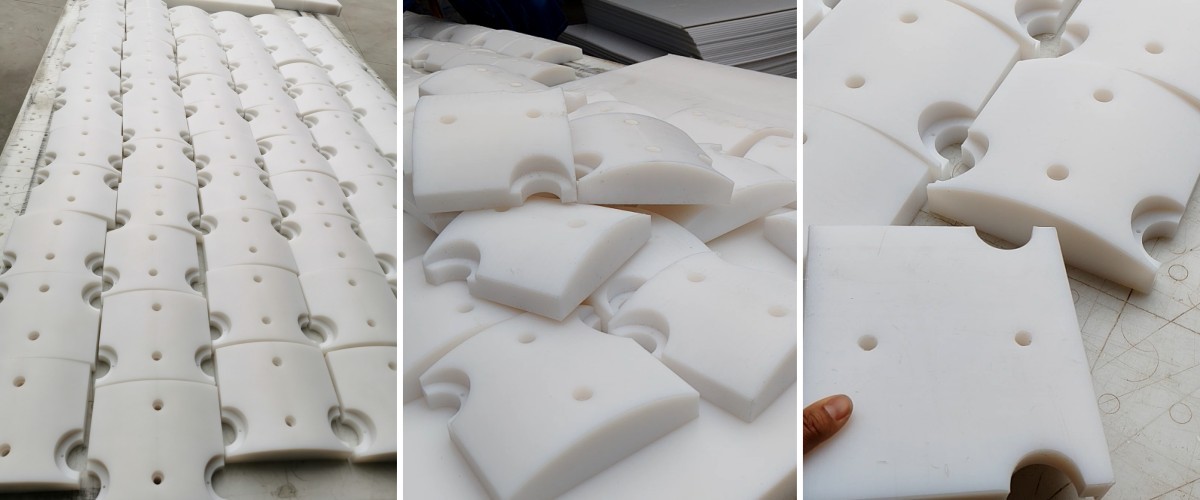

Industrial equipment often incorporates numerous non-standard, irregularly shaped components for which no off-the-shelf alternatives exist; these require custom cutting and forming based on specific blueprints. This project involved the batch production of complexly contoured saddles machined from Ultra-High Molecular Weight Polyethylene (UHMW-PE) sheet, demonstrating our capability to translate intricate designs into finished products.

The client provided detailed drawings featuring curved slots, positioning holes, and beveled edges—geometries difficult to achieve via conventional one-piece molding. By utilizing precision CNC milling on UHMW-PE sheet stock, we transformed flat blanks into saddles that met strict contour specifications and ensured high batch consistency. The finished parts featured smooth, burr-free surfaces and precise dimensions for holes and curved slots, while fully retaining the raw material's inherent wear and impact resistance.

Every saddle produced from the UHMW-PE sheet underwent rigorous verification against the design specifications. Following batch production, dimensional deviations remained within acceptable limits, allowing for direct delivery without the need for rework. This highlights the stability of the UHMW-PE machining process for irregular parts, ensuring consistent quality across both single prototypes and large-scale orders.

From blueprint review and process planning to precision milling and final inspection, UHMW-PE machining supports the customization of a wide range of complex, irregular polymer components. This case study clearly demonstrates that UHMW-PE machining is well-suited for non-standard products with diverse structural requirements, effectively turning client concepts into functional finished goods and providing a reliable manufacturing solution for specialized industrial components.
