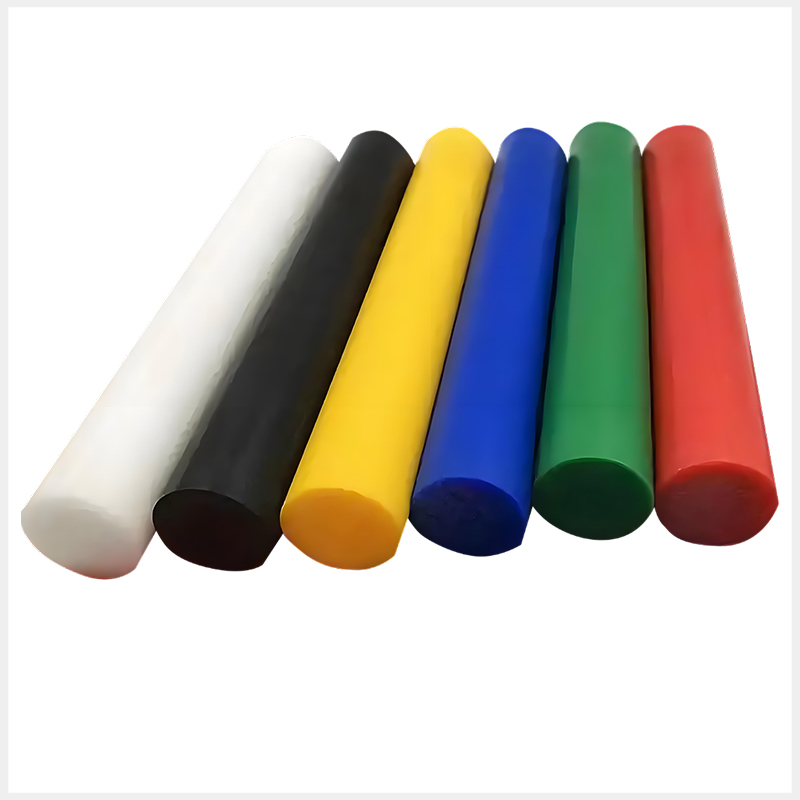

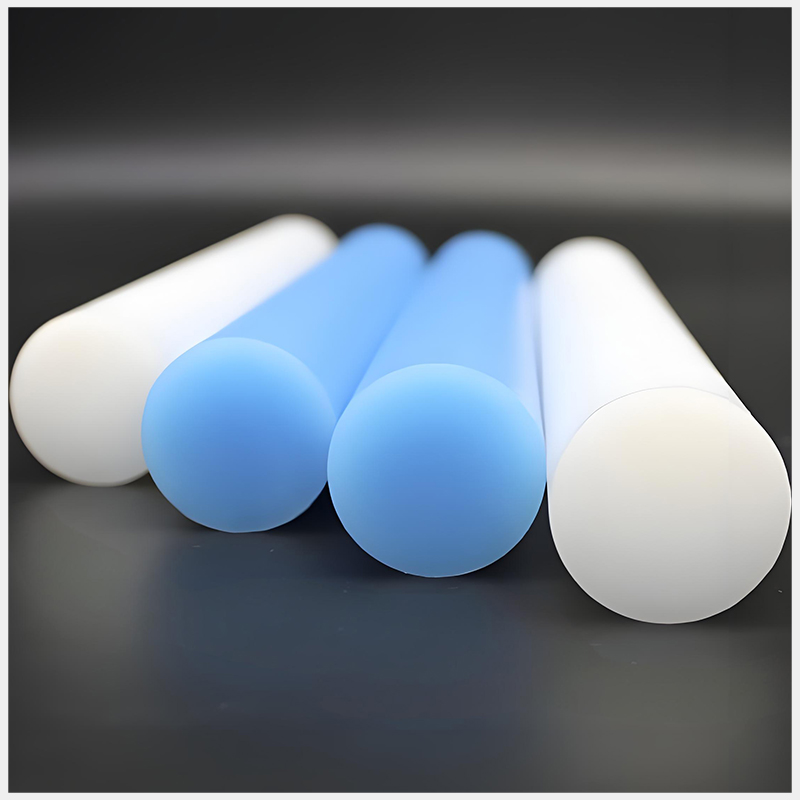

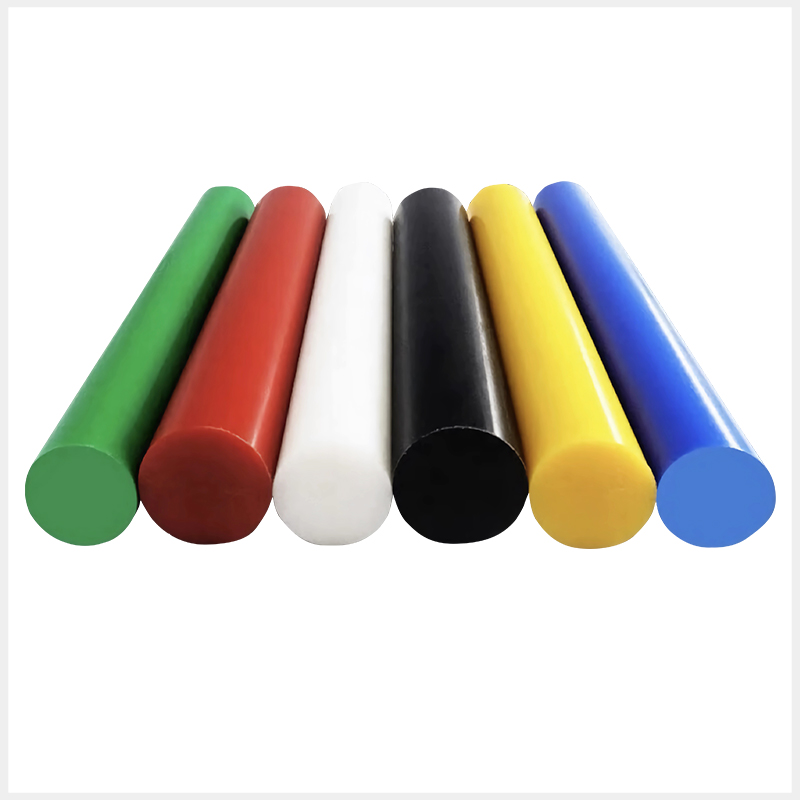

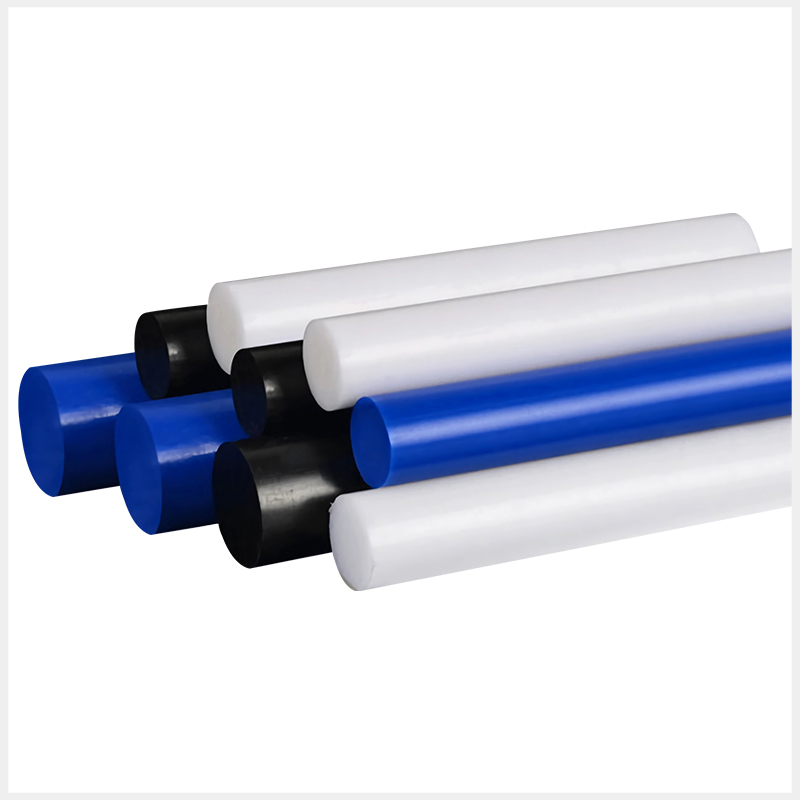

UHMWPE Rod

UHMWPE Rod

Key features of our UHMWPE products:
• Made from 100% pure UHMWPE, these products offer high abrasion resistance, extremely low coefficient of friction, superior impact resistance and toughness, corrosion resistance, lightweight and low water absorption, hygiene and environmental friendliness. Pure UPE material is non-toxic and odorless, meets food contact material standards, and has a smooth surface that resists bacterial growth.
• Easy to cut, drill, CNC machine, or thermoform
• Custom processing according to drawings

Product Description

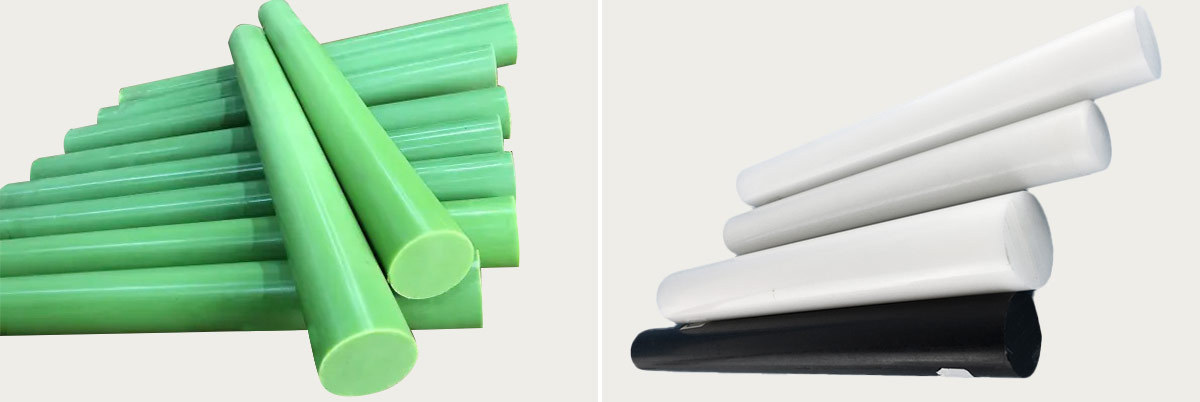

UHMWPE Rod


UHMWPE rods are made from ultra-high molecular weight polyethylene resin (UHMWPE) with a molecular weight greater than 3.5 million, using a low-pressure synthesis method using a Ziegler-type high-efficiency catalyst. UHMWPE rods are a thermoplastic engineering plastic that combines the properties of most plastics, offering numerous excellent properties such as high strength, wear resistance, and corrosion resistance. They can be machined using lathing, milling, planing, drilling, and other machining methods.


UHMWPE Rod


UHMWPE Rod


 Ultra-high wear resistance: The wear resistance is 8-10 times that of carbon steel.

▊ Excellent impact resistance: impact resistant and smash resistant, with a strength of over 130KL/㎡.

▊ Good non-stick properties: non-sticky to most powdery, lumpy, muddy and other materials.

▊ Good corrosion resistance: resistant to corrosion from various acids, alkalis, solutions, seawater, etc.


UHMWPE rods


UHMWPE Rod


serial numberprojectunitTest methodindex
1Molecular weight (viscosity method)×10GB1841-80ASTMD4020-81200-900
2Impact strengthKJ/㎡GB/T1043.1-2008≥130
3Bending strengthMPaGB/T9341-2008≥30
4Compressive strengthMPaGB/T1041-2008≥35
5Ball indentation hardnessN/m㎡GB/T3398.1-2008≥40
6densityg/cm³GB/T1033.1-20080.96-1
7Friction coefficient
GB/T3960-20080.11-0.19
8water absorption%GB/T1034-2008≤0.01



UHMWPE Rod


UHMWPE Rod

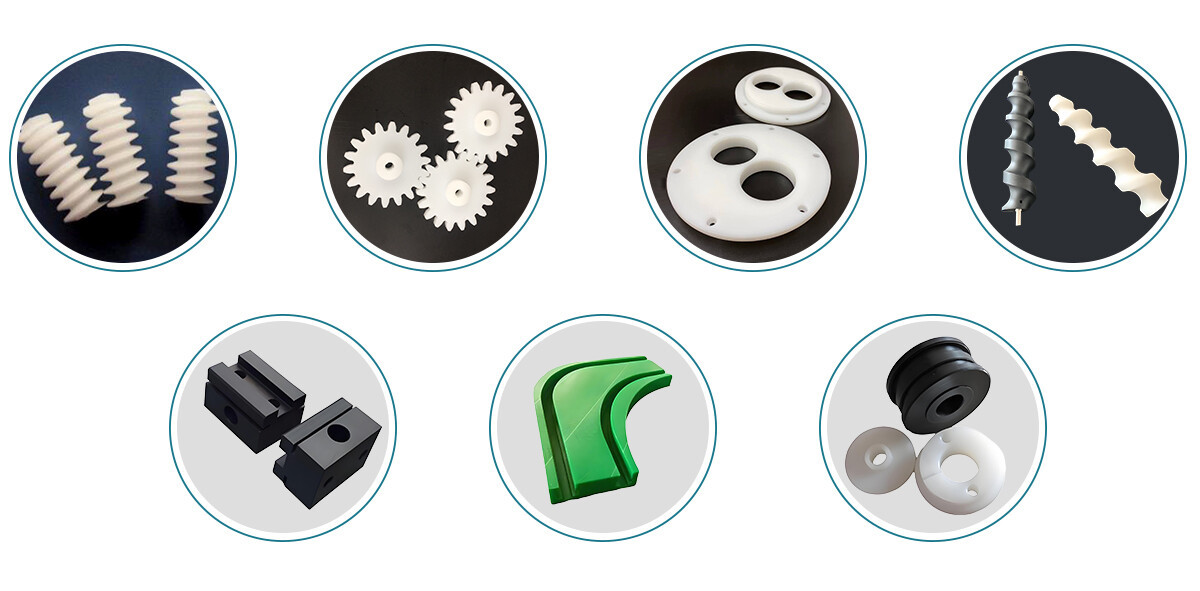

1)   In the field of mechanical engineering, UHMWPE Rod is often used to manufacture wear-resistant parts, bearings, guide rails, gears, etc. Due to its high strength and wear resistance, it can extend the service life of equipment and improve operating efficiency;

2)   In the field of chemical processes, UHMWPE Rods are used to prepare pipes, valves, pumps and other equipment for corrosive media, providing longer service life and safer process conditions.

3)   In the textile industry, the impact resistance and wear resistance of UHMWPE Rod are mainly utilized, and the main products are used to manufacture shuttles, gears and other impact-resistant and wear-resistant parts.

4)   In the field of food packaging, UHMWPE Rod is often used to prepare food packaging containers and food processing equipment due to its food-grade material properties. Its wear resistance and chemical resistance ensure the safety of packaging materials.

5)   In the medical field, UHMWPE Rod has good biocompatibility and corrosion resistance and is used to manufacture medical devices such as heart valves and artificial joints.
